Laser scanning technology makes it possible to reverse engineer with precision. If your 2D-drawings are lost, let us provide them in 3D! Save time, reduce expenses and increase precision.
NO DRAWINGS?
NO PROBLEMS!
At Horizon we use a state of the art FARO Focus laser scanner to assist you with your as-built needs; anything from structural modifications to creating 3D as-built piping models saving you time, headaches and money on your next refit. Having an as-built piping model greatly reduces downtime. Additionally the accuracy is greatly improved in comparison to any original shipbuilder drawings or models.

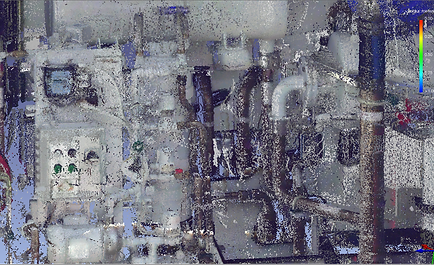

Engine Room Piping Scan
When should I 3D-scan?
- For structural, layout and styling changes
- For equipment foundations and equipment installations
- Retrofits such as ballast water management and scrubber systems
- For re-routing of piping and ducting
- When a hull model is needed for hydrostatics and stability analysis
Scans of existing structure for planned modifications
- Drawings may be missing or being kept by the builder or previous owner
Get new digital 3D files for present and future projects.
- Save Time and Money
Reduce the number of ship checks
Reduce travel time, lead time and expenses.
Scan once, no need to return.
- Achieve measurement precision
No manual measurements needed.
No need to trace over old scanned drawings.
No need to verify out-of-date drawings.
- For efficient reverse engineering
